Tiny House plans

$275.00

Tiny house plans will include the following blueprints:

First Floor Plan

Rear Elevation

Front Elevation

Eave Details

Roof Plan

First Floor Electrical

Loft Electrical

Plumbing Plan

Materials list

Purchase

Framing Materials List:

Floor (Iron Eagle Trailer)

24 2 x 6” x10’ floor joists

4 90 degree brkts 4” 32 2 x 6” hangers brkts

6 Tubes of construction adhesive.

28 3/8” x 6” bolts, nuts, and washers

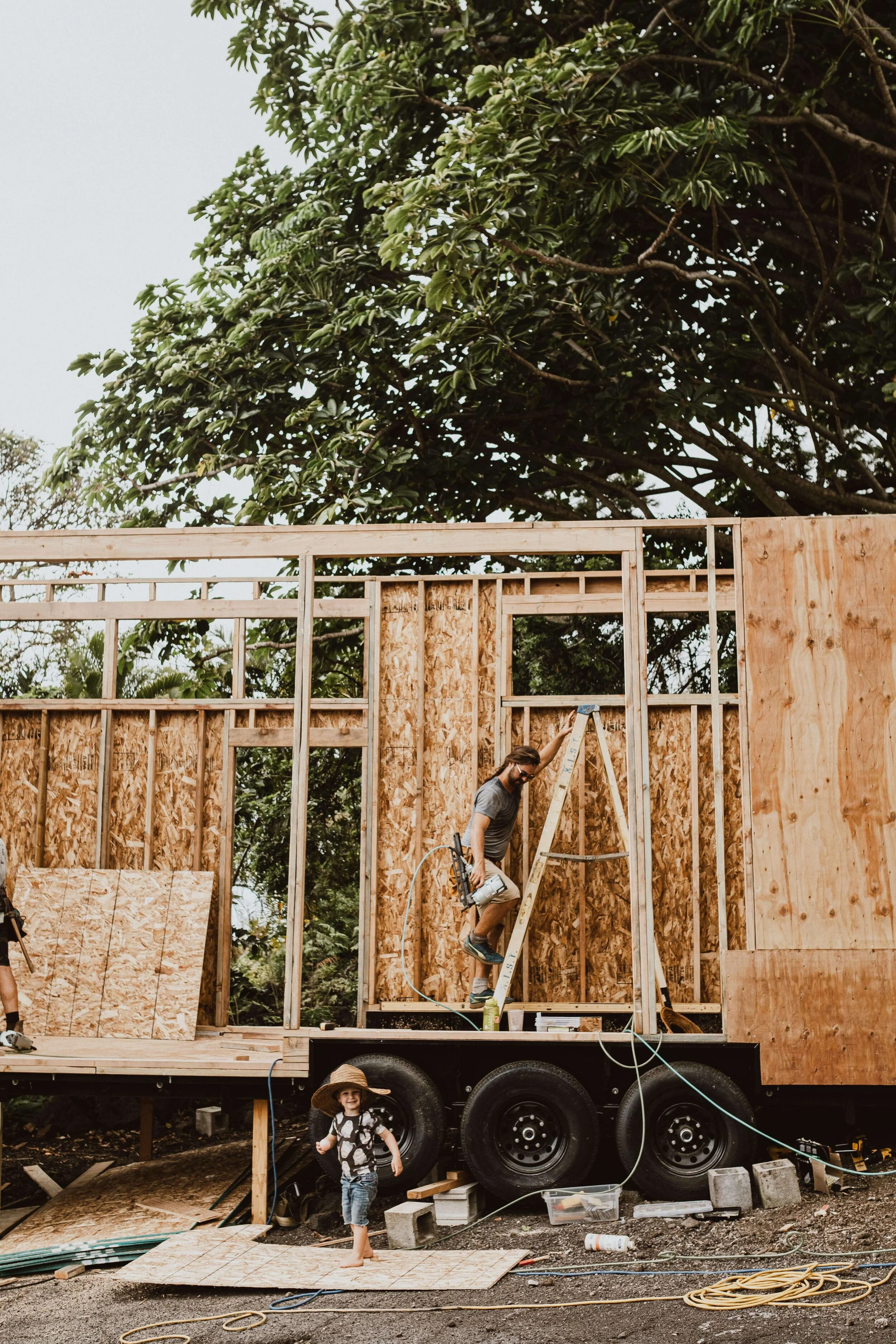

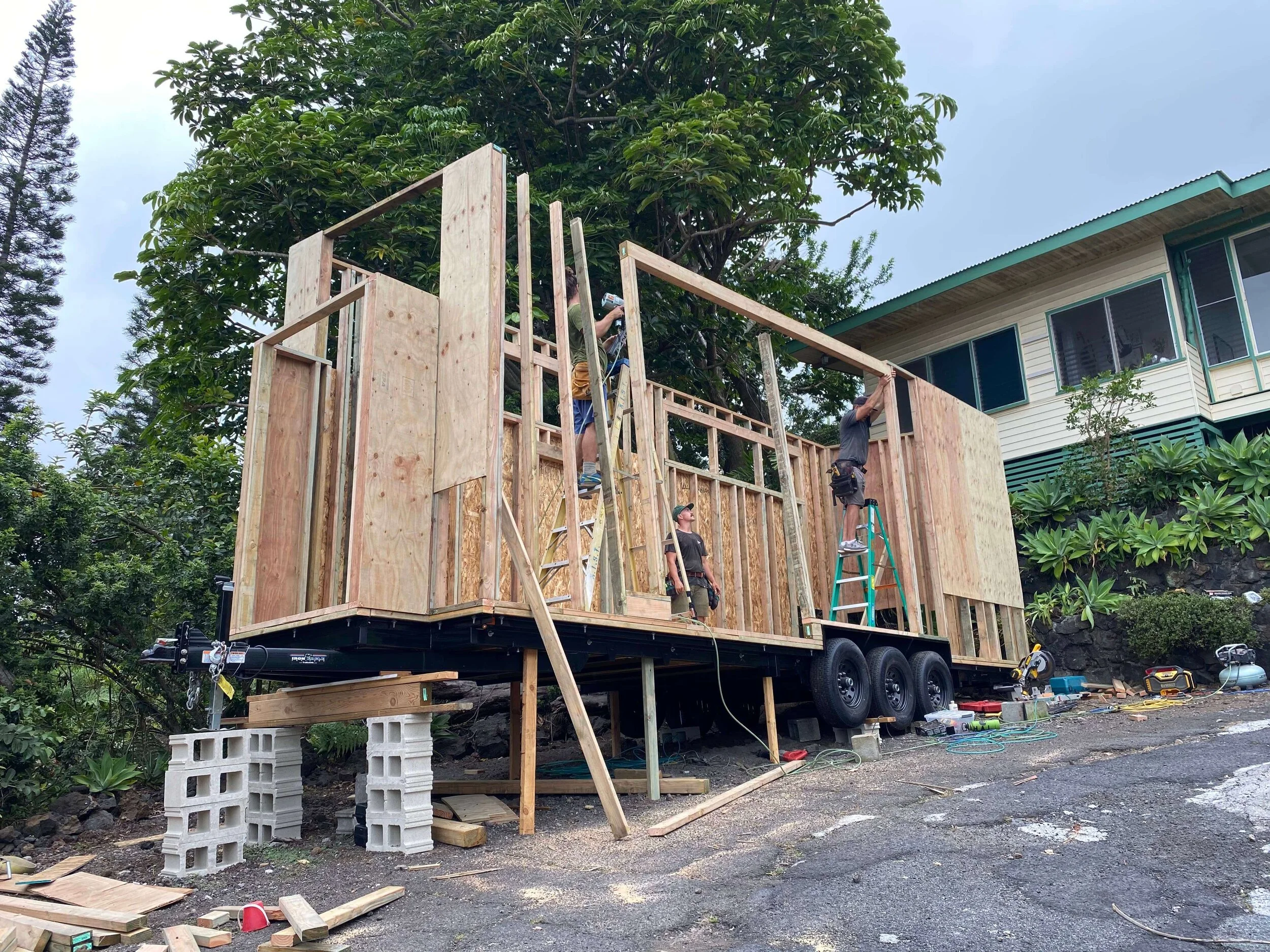

Walls

20 2 x 4” x 8’ stud

40 2 x 4” x 10’ stud

16 2 x 4” x12’ studs

5 4 x 6” x 12’ stud

26 1/2” x 4’ x 8’ OSB sheeting

8 HDU hold downs

Roof

24 2 x 4” x 10’ Rafter

9 1/2” x 4’ x 8’ OSB sheeting

2 1 x 8” x 10’ Primed fascia board

4 1 x 8” x 16’ Primed fascia board

32 2 x 4” hanger brkts

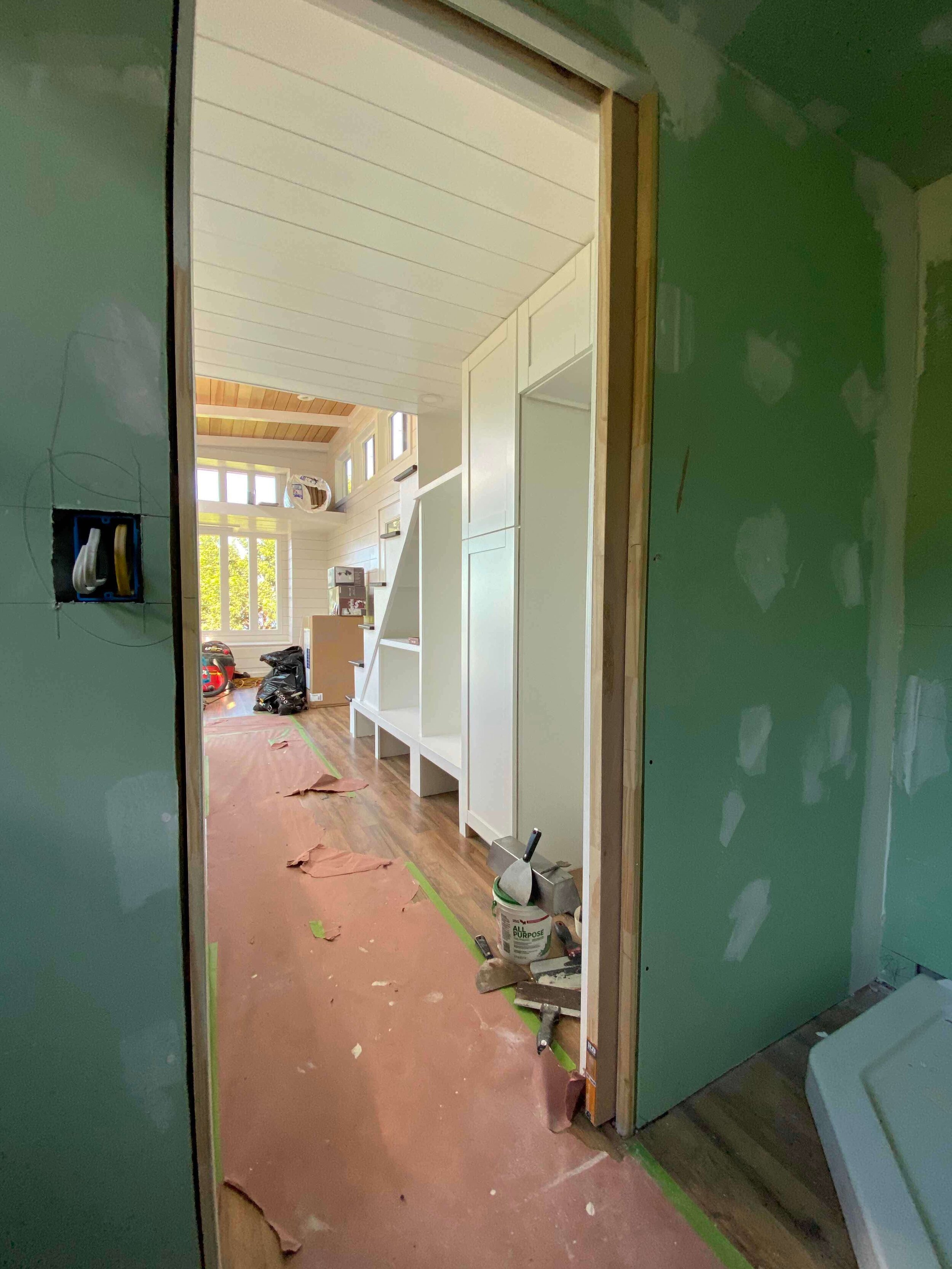

tiny house design

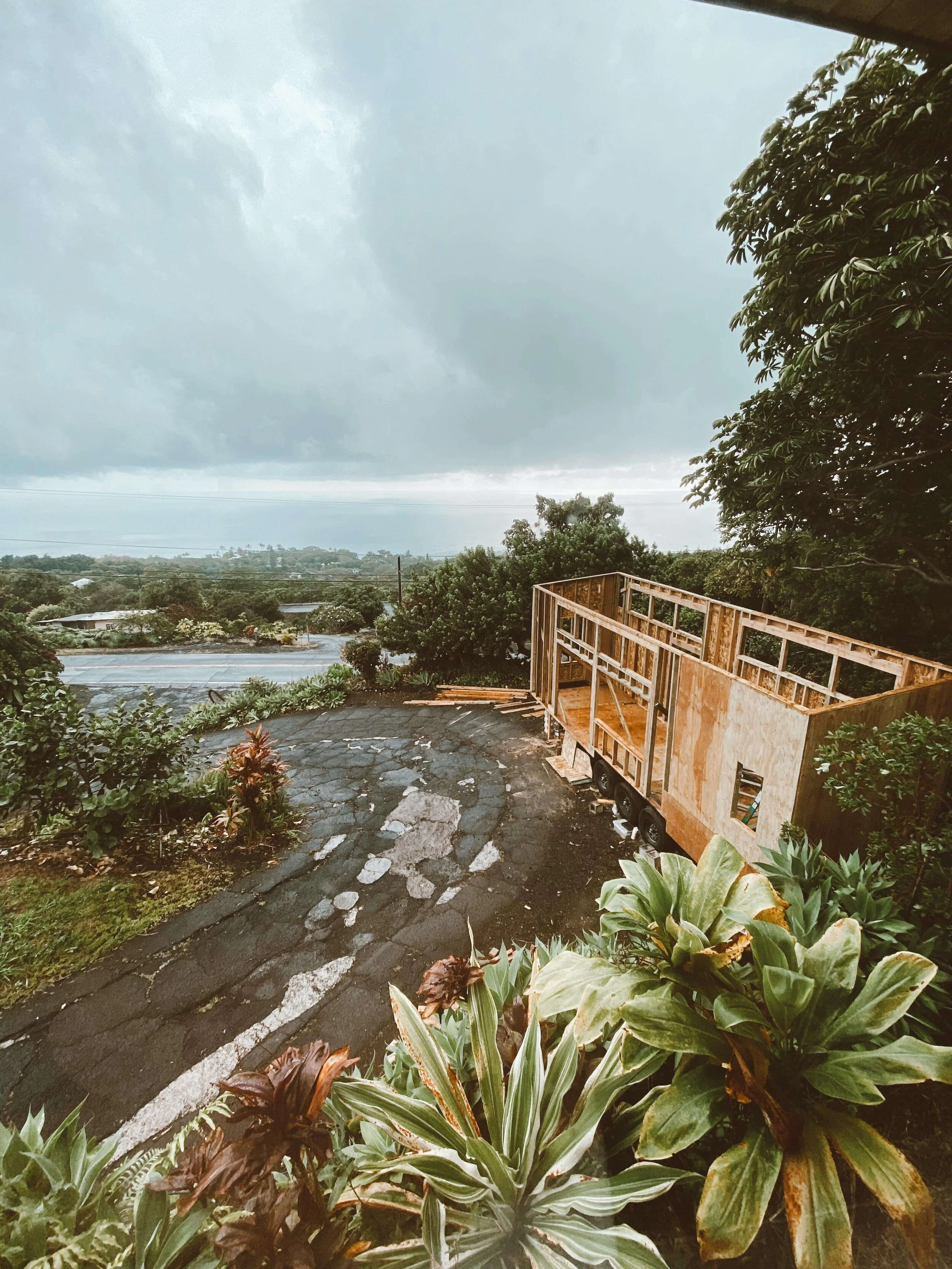

tiny house design

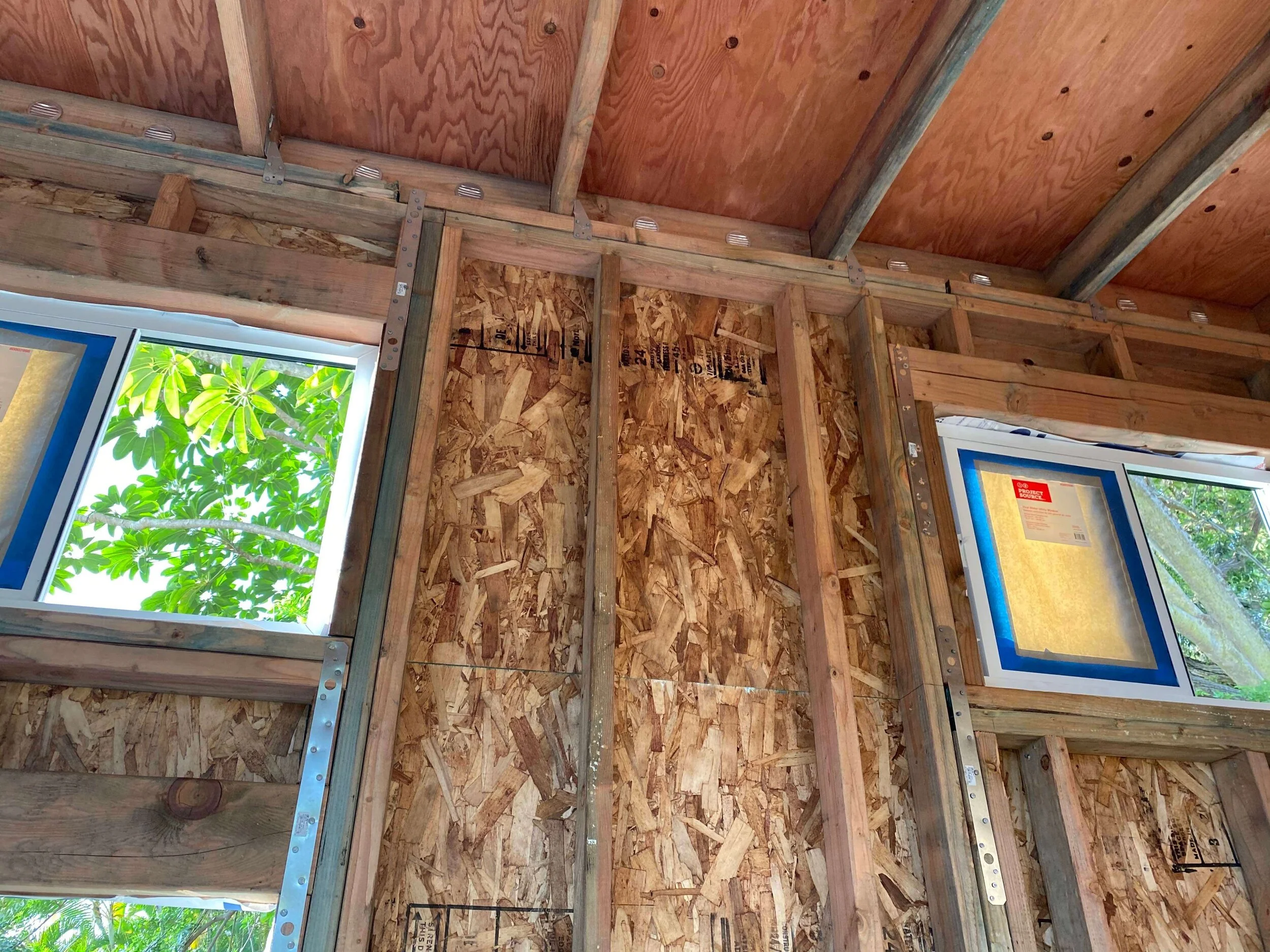

tiny house design

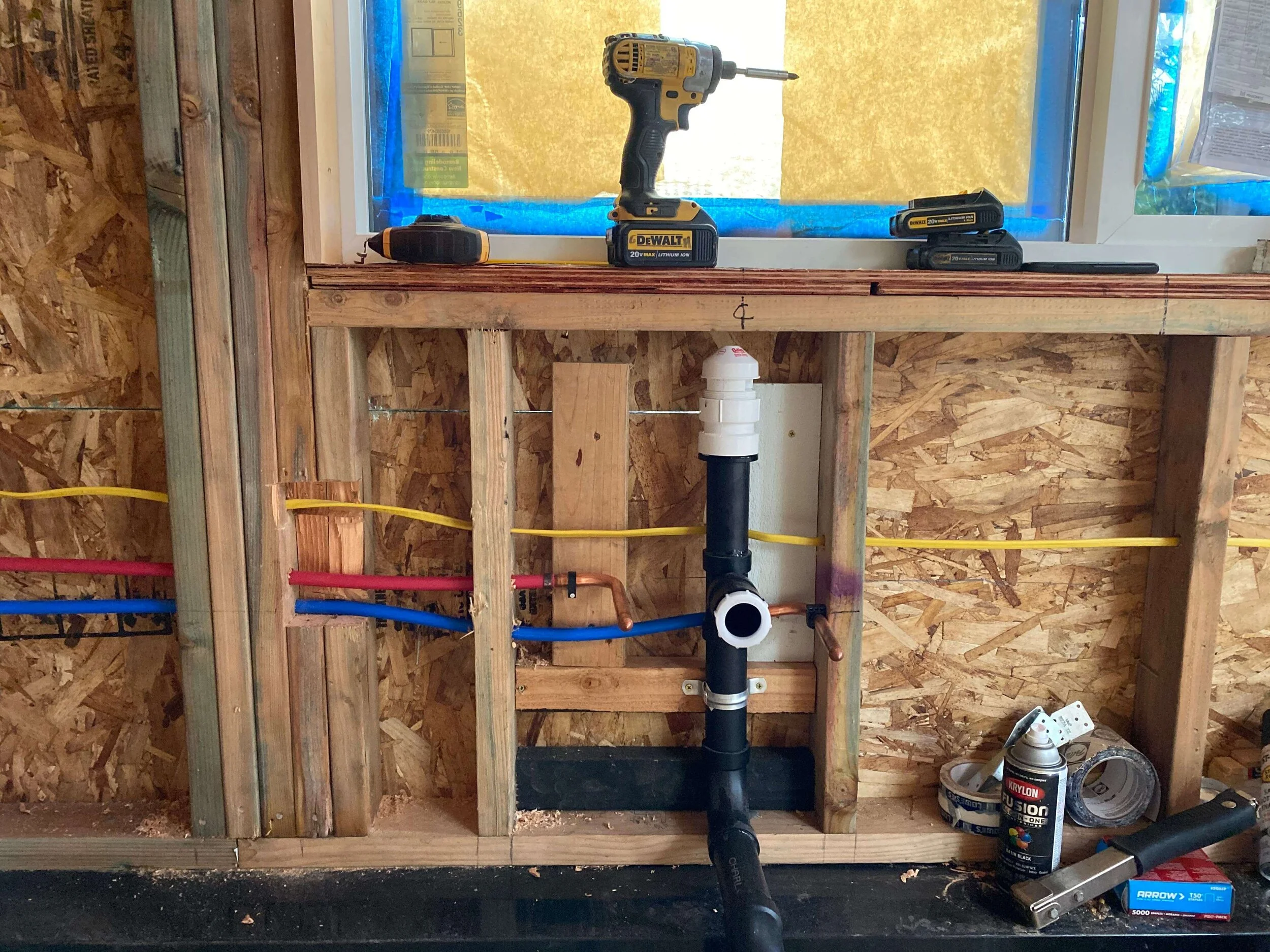

tiny house design
tiny house design
tiny house design

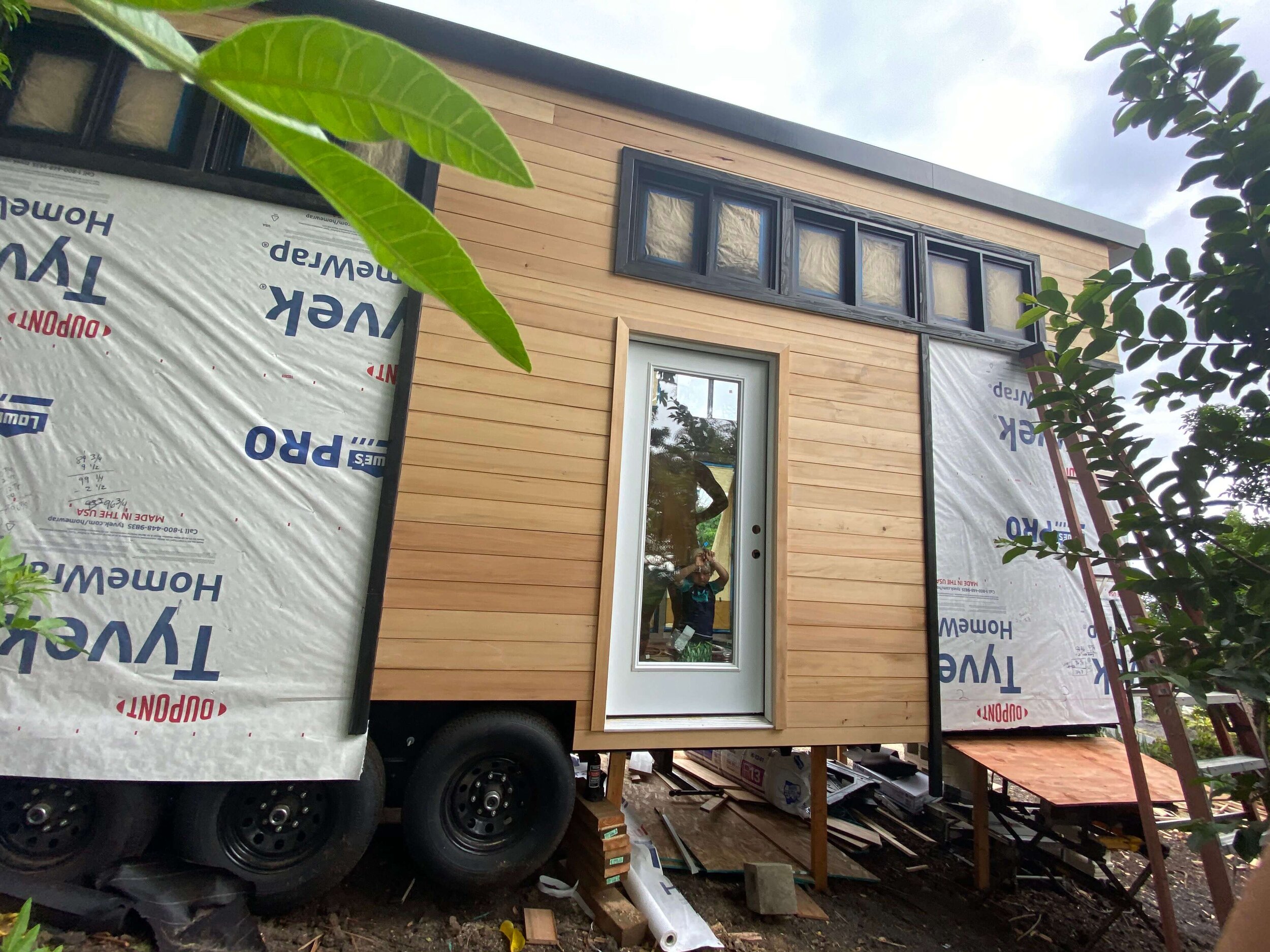

tiny house plan

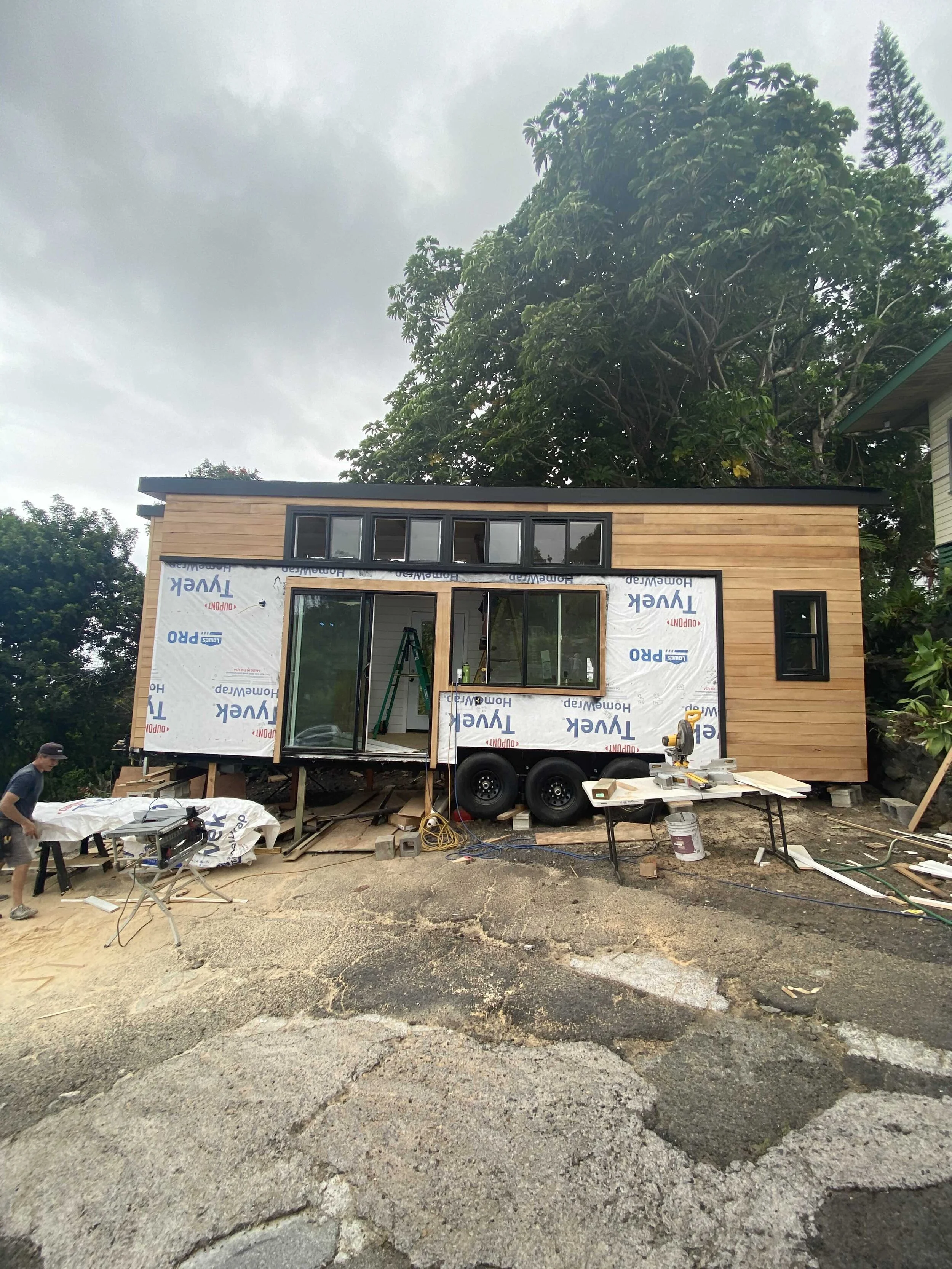

tiny house
